Product Information:
ZKTeco F18 Fingerprint Standalone Access Control Features and Benefits
Features:
ZKTeco F18 Fingerprint Standalone Access Control Description
Zkteco F18 Fingerprint Standalone Access Control and Time Attendance

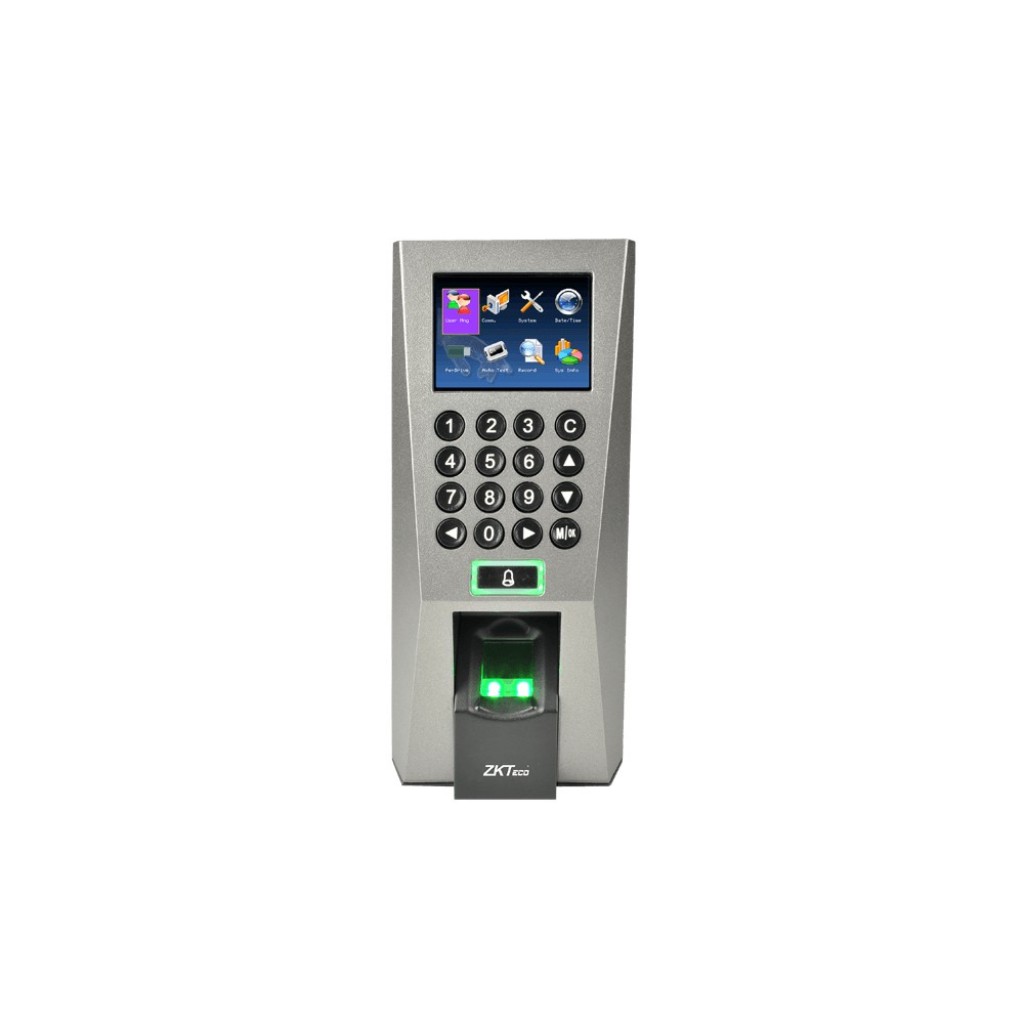

F18 is an innovative biometric fingerprint reader for access control application. Offering unparalleled performance by using an advanced algorithm for reliability, precision and excellent matching speed. The F18 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality infrared detection fingerprint sensor. The device offers flexibility to be installed standalone or with any third party access control panels .that support standard Wiegand signal. All the operations can be done on the TFT-LCD color screen. The fingerprint image will be displayed on it. That will guide user to put finger on proper position and increase recognition rate. TCP/IP and RS485 are available that the device can be used in different network.
Function
TFT Color Screen
Audio-visual indication for acceptance and rejection of valid/invalid fingerprints.
More simple and convenient operation.
Fast and Accurate Fingerprint Algorithm
1 touch a-second user recognition.
Store 3,000 fingerprint templates, 30,000 cards and 100,000 transactions.
Easy Installation and Connectivity
Wiegand input & output.
Network interface by TCP/IP or RS485
Slim and Elegant Design
Sleek and slim design for narrow spaces.
Full Access Control Features

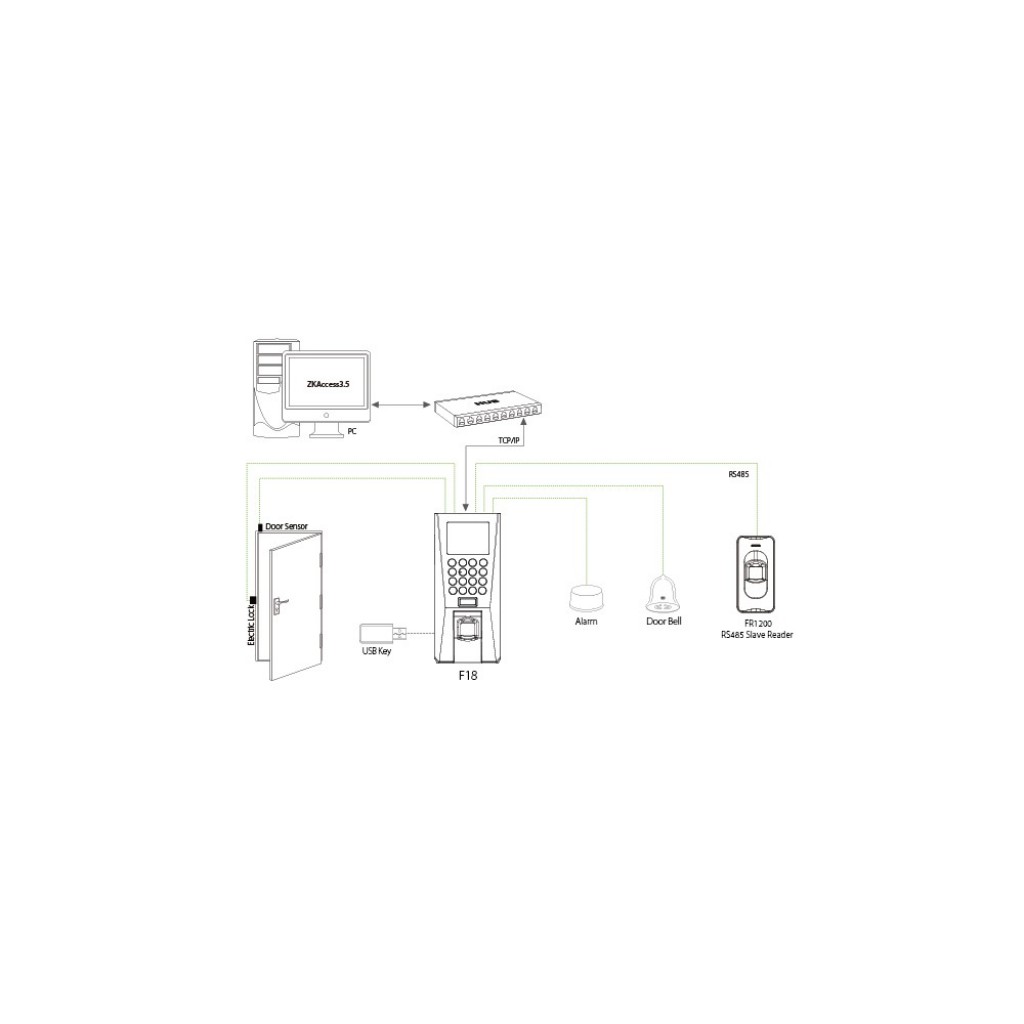

Anti-passback. Webserver. Access control interface
for 3rd party electric lock, door sensor, exit button, alarm and doorbell.
Easy Operation and Management
Work without computer.
Buzzer, 4×4 keypads and door bell.
Built-in serial and Ethernet ports.
Built-in USB port allows for manual data transfer.
Technical Specifications
| Fingerprint Capacity |
3000 Templates |
| Card Capacity |
5,000 (Optional) |
| Transaction Capacity |
30,000 Transactions |
| Sensor |
ZK Optical Sensor |
| Algorithm Version |
ZK Finger VX9.0&10.0 |
| Communication |
RS232/485, TCP/IP, USB-host |
| Access Control Interface |
3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell |
| Wiegand Signal |
Input and Output |
| Display |
TFT LCD Color Screen |
| Interface Styles |
Common, Matrix and Magic styles |
| Standard Function |
Webserver, Anti-passback |
| Optional Function |
ID Card, Mifare Card |
| Power Supply |
12V DC,3A |
| Operating Temperature |
0 °C- 45 °C |
| Operating Humidity |
20%-80% |
| Dimension(WxDxH) |
80×183×42mm |
