Product Information:

Black Copper Handheld Fingerprint Data Collector BC-PDR-300 Features and Benefits

Black Copper Handheld Fingerprint Data Collector BC-PDR-300 Description

Overview

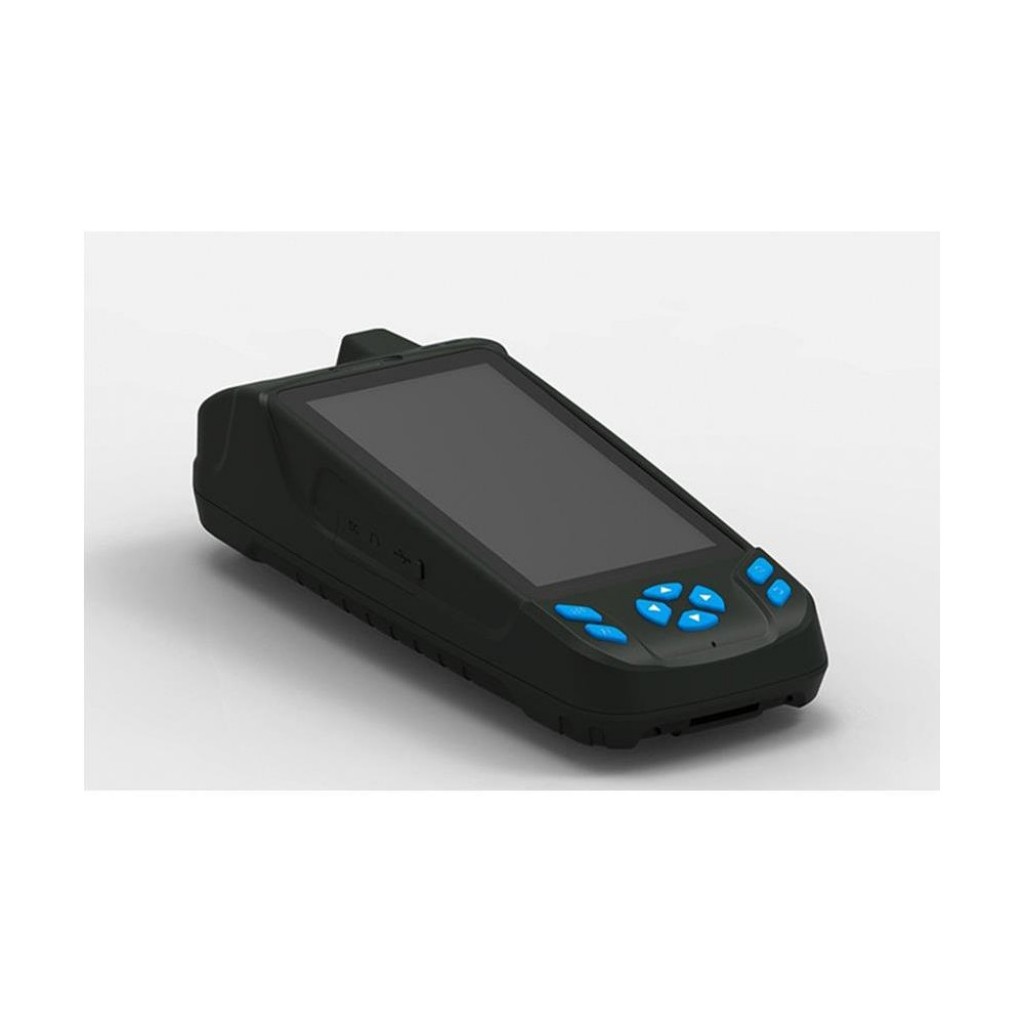

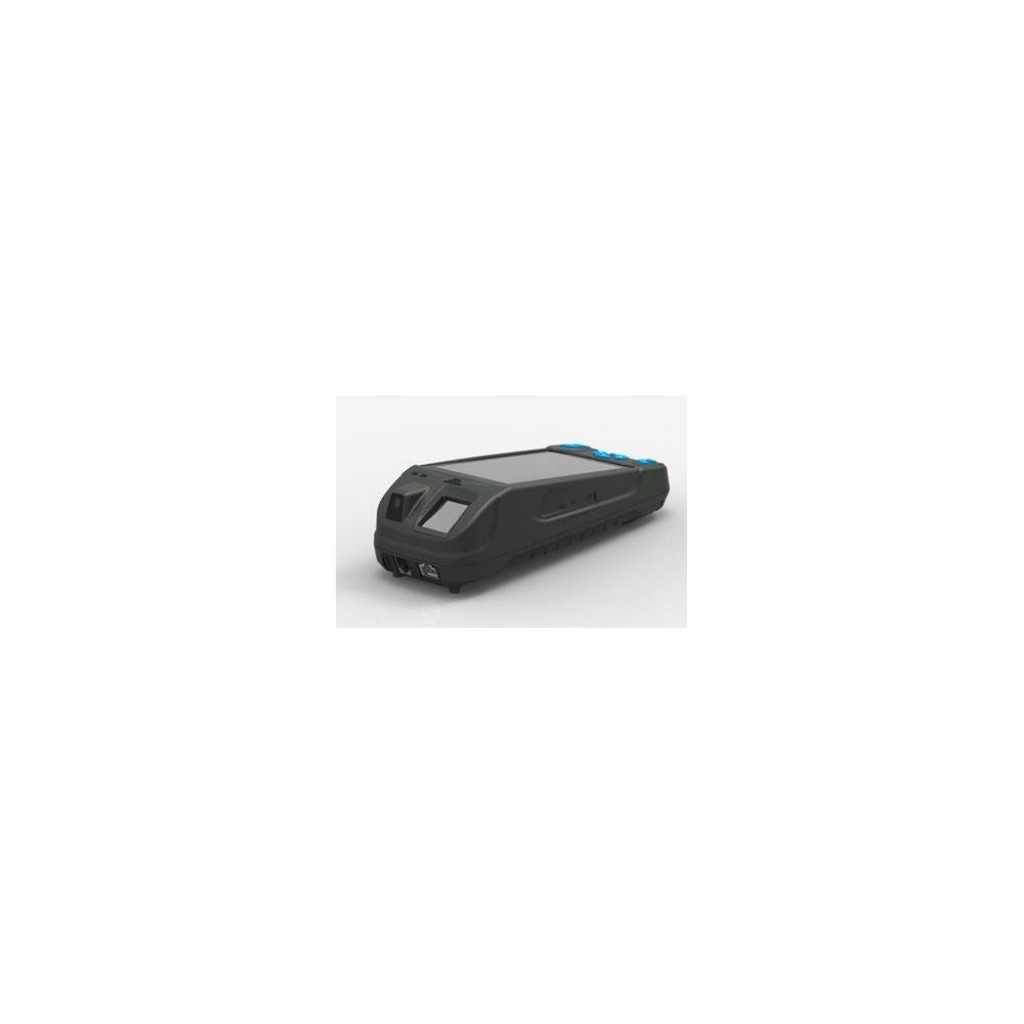

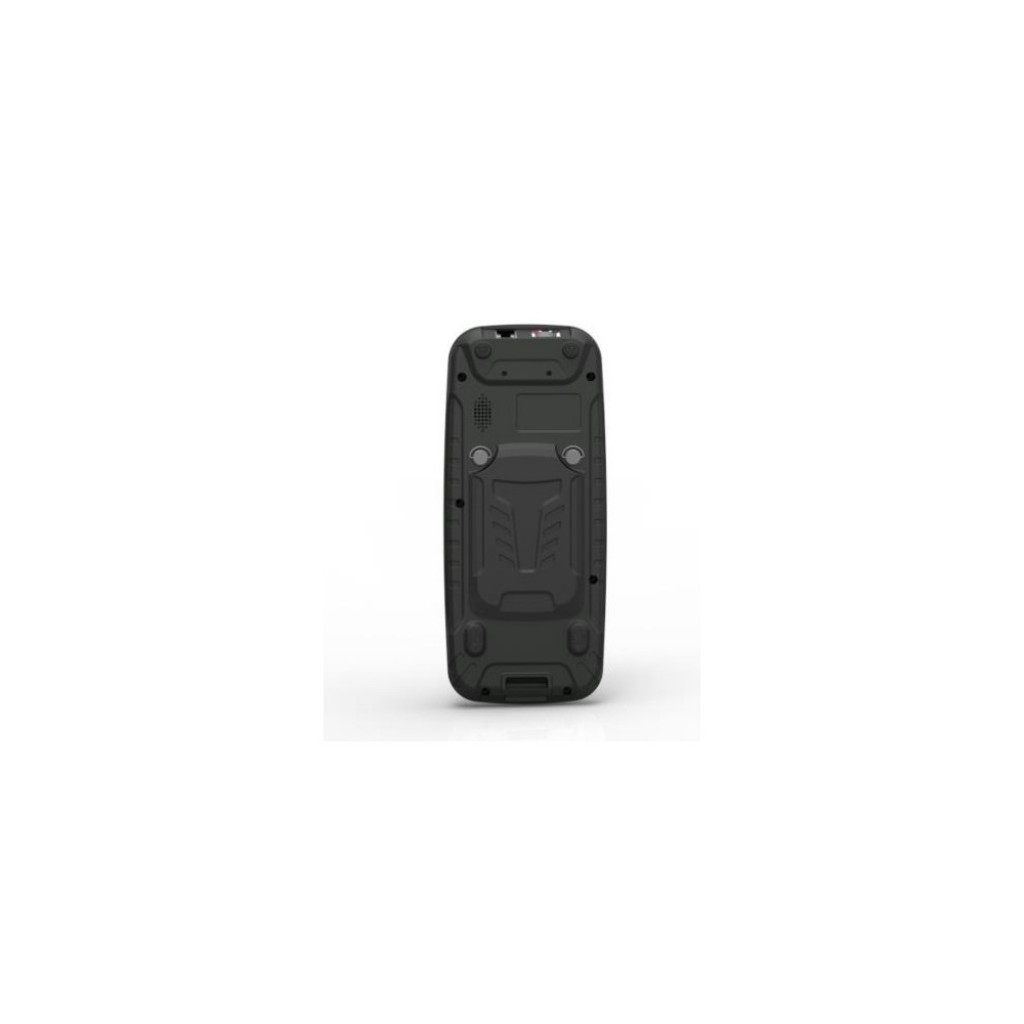

5.0 inches capacitive touch screen, carrying optical finger prind module, available for quick sample collection and verification of fingerprint.
3G, Wifi, RJ45, bluetooth, various data transmission method, micro phone, loud speaker and telephone receiver, RJ11 and earphone port offer it complete communication function. Which makes M5 ideal for telecom service and biometric information collection and verification

Product specification

• Android 4.2.2 OS
• Size: 210(L)* 90(W)*55(H)（mm）
• Weight: About 500g（battery included）
• CPU: ARM Cortex A7 1.2Ghz Dual core
• RAM:1GB ROM:8GB
• Display: 800x480 16:9
• TFT 5.0 inches capacitive touch screen
• Fingerprint Module: Optical Sensor.500DPI, Plate Size: 18.2x22.9mm.Supports INCITS ANSI 378-2004, ISO/IEC 19794-2, and third party templates FBI Certified (FIPS 201/PIV, Mobile ID FAP 20),STQC Certified, U20 SecuGen
• Camera: 2.0MP, fixed focus
• Battery: 5400mAh, Li-ion battery
• Power supply: DC 5V 2A
• Interface: RJ45,RJ11,USB 2.0 OTG, 0.35 inches earphone port, TF slot
• Keyboard:4 direction keys,4 function keys
• WLAN: support 802.11 b/g
• Mobile network: 3G WCDMA HSPA UMTS 2100Mhz,GSM/GPRS/EDGE
• Bluetooth:2.1 EDR
• Support Maximum 32GB SD card expansion

Advantage

• Light weight,support handheld or desk display, high quality fingerprint data collection method.
• Multi type function keys, providing effective support for touch screen.
• Android 4.2.2 system, offering good compatibility for apps, 8GB ROM, larger storage.
• Providing interfaces for RJ45 and RJ11 with keeping the compact design. Ensuring good support for Ethernet connection as well as Telecom service.
• 1 year warranty, Free SDK
