Product Information:

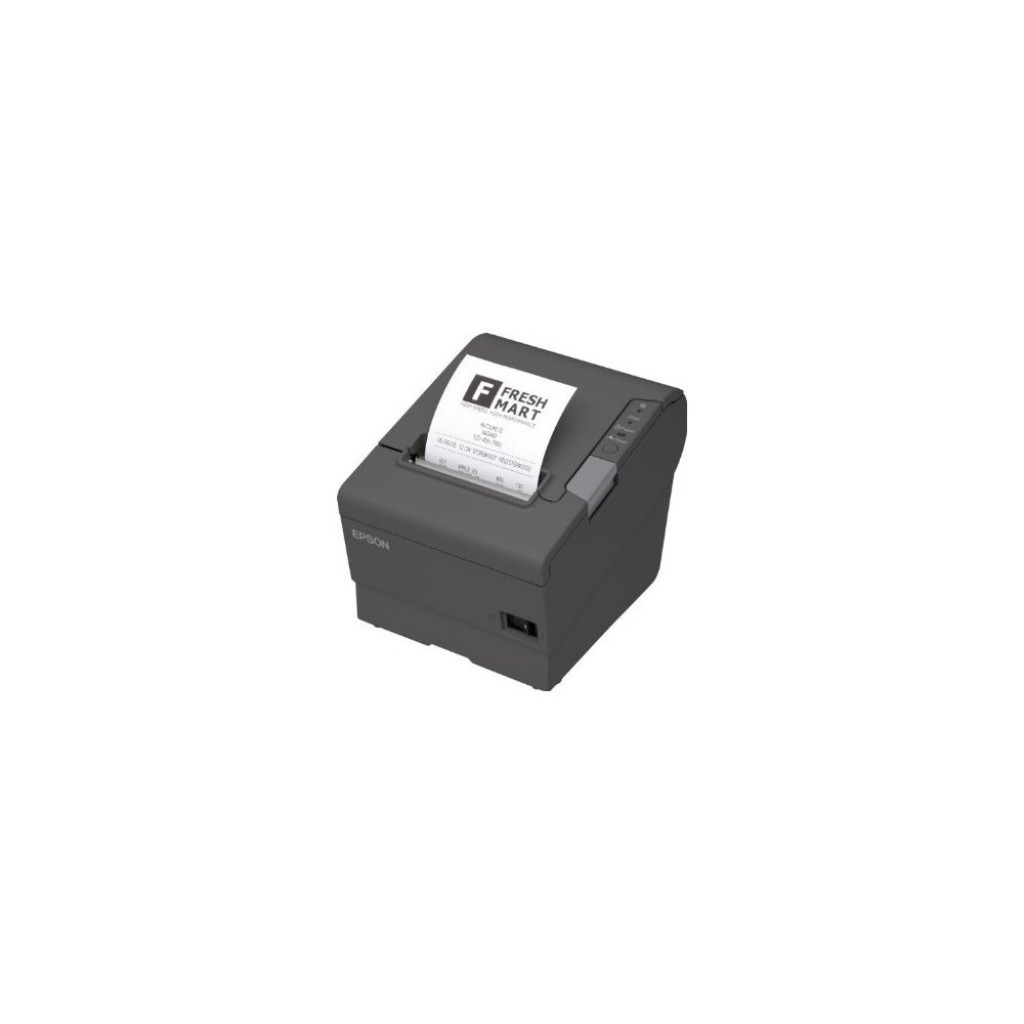

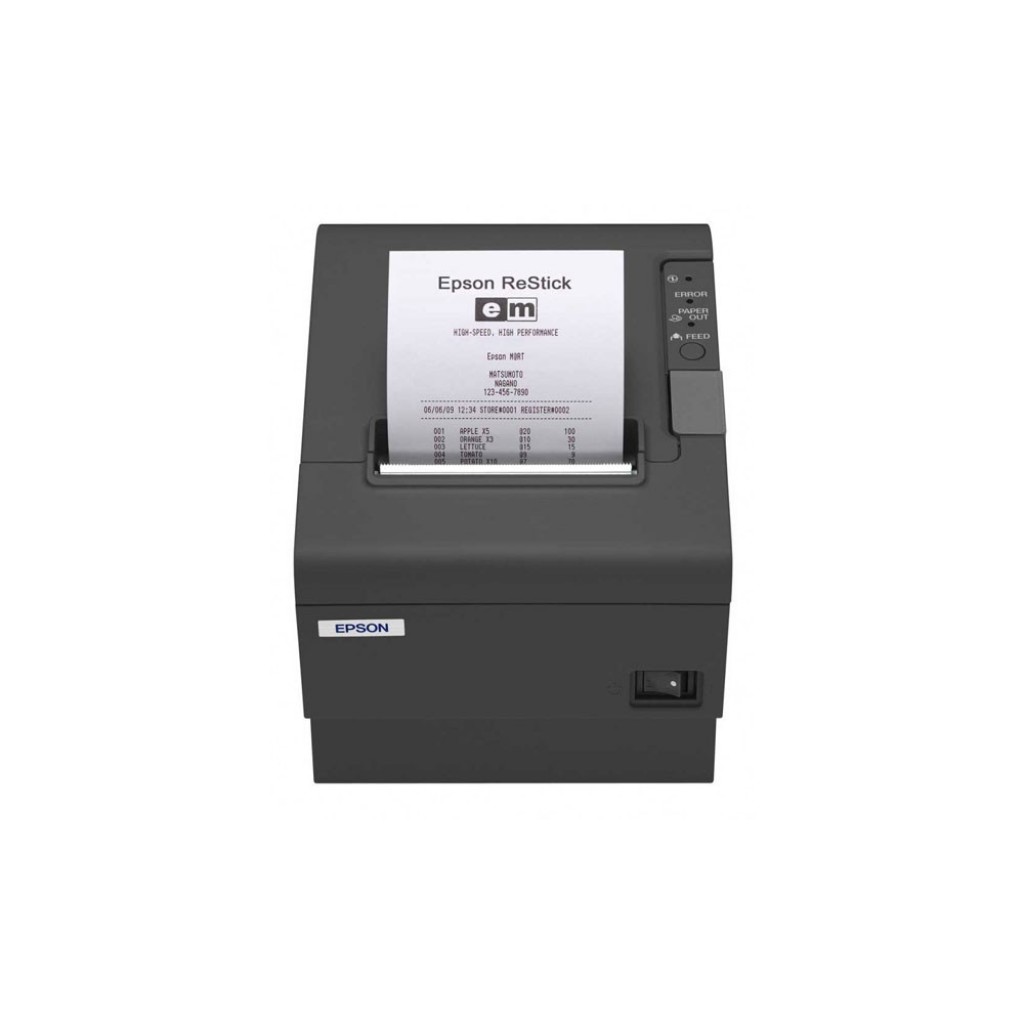

Epson TM-T88V Thermal Receipt Printer USB Features and Benefits
Features:
Epson TM-T88V Thermal Receipt Printer USB Description
|
Brand : Epson
Model Name
|
TM-T88V |
| Print Method |
Thermal line printing |
| Print Font |
9 x17 / 12 x 24 |
| Column Capacity (columns) |
56 / 42 |
| Character Size (mm) |
0.99 (W) x 2.4 (H) / 1.41 (W) x 3.39 (H) |
| Character Set |
95 Alphanumeric, 16set International, 128 × 43 Graphic
Bar code: UPC-A, UPC-E, JAN8(EAN), JAN13(EAN),
CODE39, CODE93, CODE128, ITF, CODABAR, GS1-128, GS1 DataBar
Two-dimensional code: PDF417, QRCode, MaxiCode, 2D GS1 DataBar, Composite Symbology |
| Character Per Inch |
20 CPI / 15 CPI |
| Interfaces |
RS-232, USB |
| Data Buffer |
4K bytes / 45 bytes |
| Print Speed |
Max. 300mm/sec |
| Paper Dimensions (mm) |
Roll paper: 79.5 ± 0.5 (W) × dia. 83.0 / 57.5 ± 0.5 (W) × dia. 83.0 |
| Paper Thickness (mm) |
0.06 to 0.07 |
| Power |
24 VDC ± 7% |
| Power Consumption |
Approx. 1.8 A (mean) |
| D.K.D. Function |
2 drives |
| Reliability |
|
| Printer Mechanism Life |
20 million lines |
| Auto cutter life |
2 million cuts (when using OJI Paper PD150R or PD160R) |
| MTBF |
360,000 hours |
| MCBF |
70,000,000 lines |
| Overall Dimensions (mm) |
145 (W) x 195 (D) x 148 (H) |
| Mass (Approx) |
1.6 kg |
| EMC Standards |
FCC, VCCI, CE marking, AS / NZS CISPR22 class A
GOST-R |
| Power Supply (option) |
PS-180 |
| Option |
Wall-hanging bracket WH-10, Power supply box OT-BX88V |
| Safety Standards |
UL / CSA / EN / TÜV / GOST-R |
ptional power supply case
secures cords under printer |
Optional mounting bracket available for
hanging the printer on the wall |
 |
As an International ENERGY STAR Partner, Epson has determined that this product meets the International ENERGY STAR guidelines for energy efficiency. |
Epson is the registered trademark of Seiko Epson Corporation. Epson trademarks of Seiko Epson Corporation. All other names and company names used herein are for identification purpose only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. All print samples shown herein are simulations. Specifications are subject to change without notice. |
Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability.
