Product Information:

Hikvision DS-2CD1053G0-I Features and Benefits

Features:


Hikvision DS-2CD1053G0-I Description

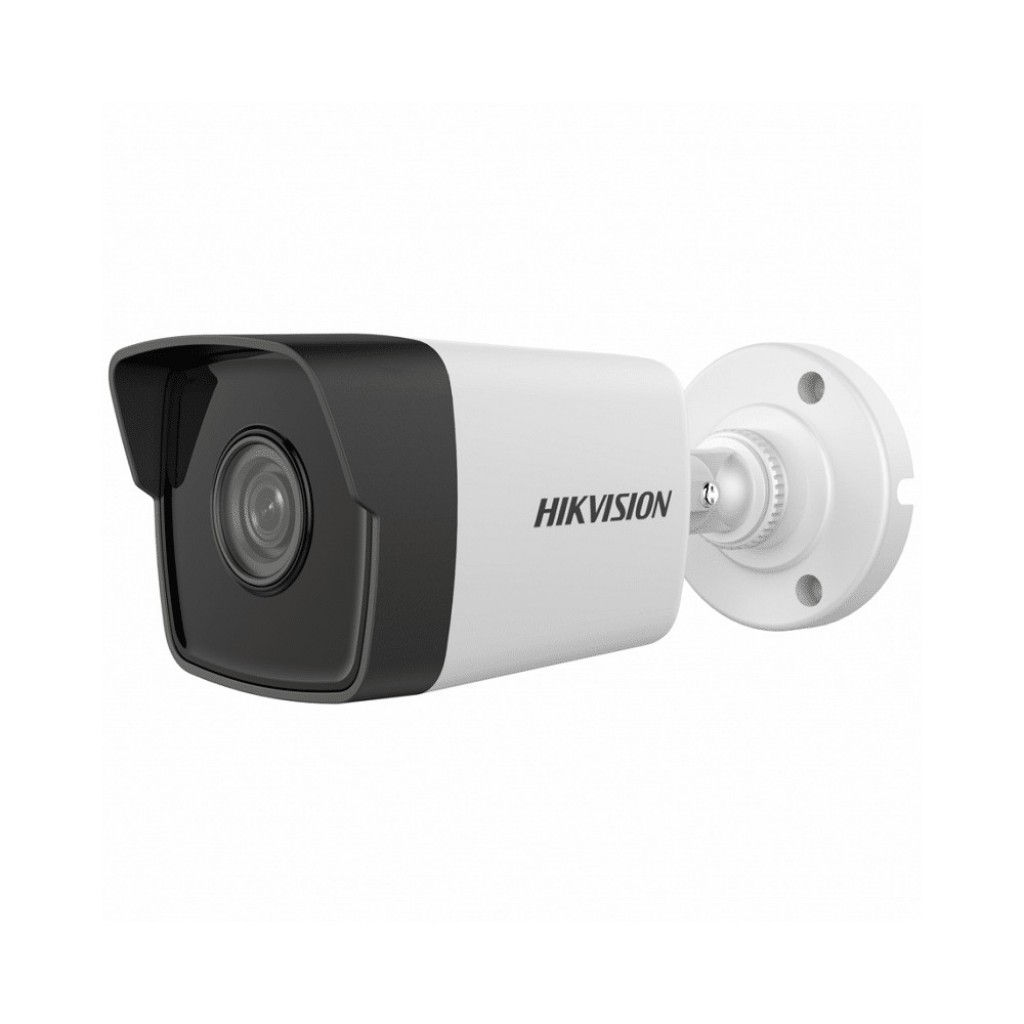

5 MP Fixed Bullet Network Camera

• High quality imaging with 5 MP resolution
• Efficient H.265+ compression technology
• Clear imaging even with strong back lighting due to 120 dB WDR
• Water and dust resistant (IP67)
• EXIR 2.0: advanced infrared technology with long IR range

Camera





• Image Sensor:          1/2.7" Progressive Scan CMOS
• Min. Illumination:          Color: 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON)
• Shutter Speed:          1/3 s to 1/100,000 s
• Slow Shutter:          Yes
• Day &Night:          IR Cut Filter
• Wide Dynamic Range:          120 dB
• Angle Adjustment:          Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
• DNR:          3D DNR

Lens





• Lens:          2.8/4/6 mm
• Auto-Iris:          No
• Aperture:          F2.0
• Focus:          Fixed
• FOV:          2.8 mm, horizontal FOV: 100°, vertical FOV: 74°, diagonal FOV: 130°,4 mm, horizontal field of view: 75°, vertical FOV: 55°, diagonal FOV: 98°,6 mm, horizontal field of view: 49°, vertical FOV: 37°, diagonal FOV: 60°
• Lens Mount:          M12

Illuminator





• IR Range:          Up to 30 m
• Wavelength:          850nm

Video





• Max. Resolution:          2560 × 1920
• Main Stream:          50Hz:12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720),60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub Stream:          50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Video Compression:          Main stream: H.265/H.264 ,Sub-stream: H.265/H.264/MJPEG
• H.264 Type:          Baseline Profile/Main Profile/High Profile
• H.265 Type:          Main Profile
• Video Bit Rate:          32 Kbps to 8Mbps

Smart Feature-Set





• Region Of Interest:          Support 1 fixed region for main stream and sub-stream






• Image Enhancement:          BLC/3D DNR
• Image Setting:          Saturation, brightness, contrast and sharpness are adjustable via client software and web browser
• Day/Night Switch:          Auto/Scheduled/Day/Night

Network





• Network Storage:          NAS (NFS,SMB/CIFS)
• Protocols:          TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, UDP, Bonjour, 802.1x
• API:          ONVIF(PROFILE S,PROFILE G), ISAPI
• Simultaneous Live View:          Up to 6 channels
• User/Host:          Up to 32 users,3 levels: Administrator, Operator and User
• Client:          iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
• Web Browser:          IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
• Alarm Trigger:          Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full

Interface





• Communication Interface:          1 RJ45 10M/100M self-adaptive Ethernet port

General





• Firmware Version:          V5.5.52
• General Function:          Heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Startup And Operating Conditions:          -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
• Power Supply:          12 VDC ± 25%,PoE: 802.3af, class 3
• Power Consumption And Current:          12 VDC, 0.5 A, max. 5 W,PoE (802.3af, 36 to 57 V), 0.2 A to 0.1 A, max. 6.5 W
• Material:          Front cover: metal, bracket: plastic, camera body: plastic
• Dimensions:          Camera: Ø 70 mm × 172.7mm (2.7" × 6.8"),With package: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
• Weight:          Camera: 300g (0.7 lb),With package: 550g (1.2 lb)
• Interface Protection:          IP67

Compression Standard





• H.264:          +Main stream supports
• H.265:          +Main stream supports
