Product Information:

Hikvision DS-2CD1323G0E-I Features and Benefits

Features:


Hikvision DS-2CD1323G0E-I Description

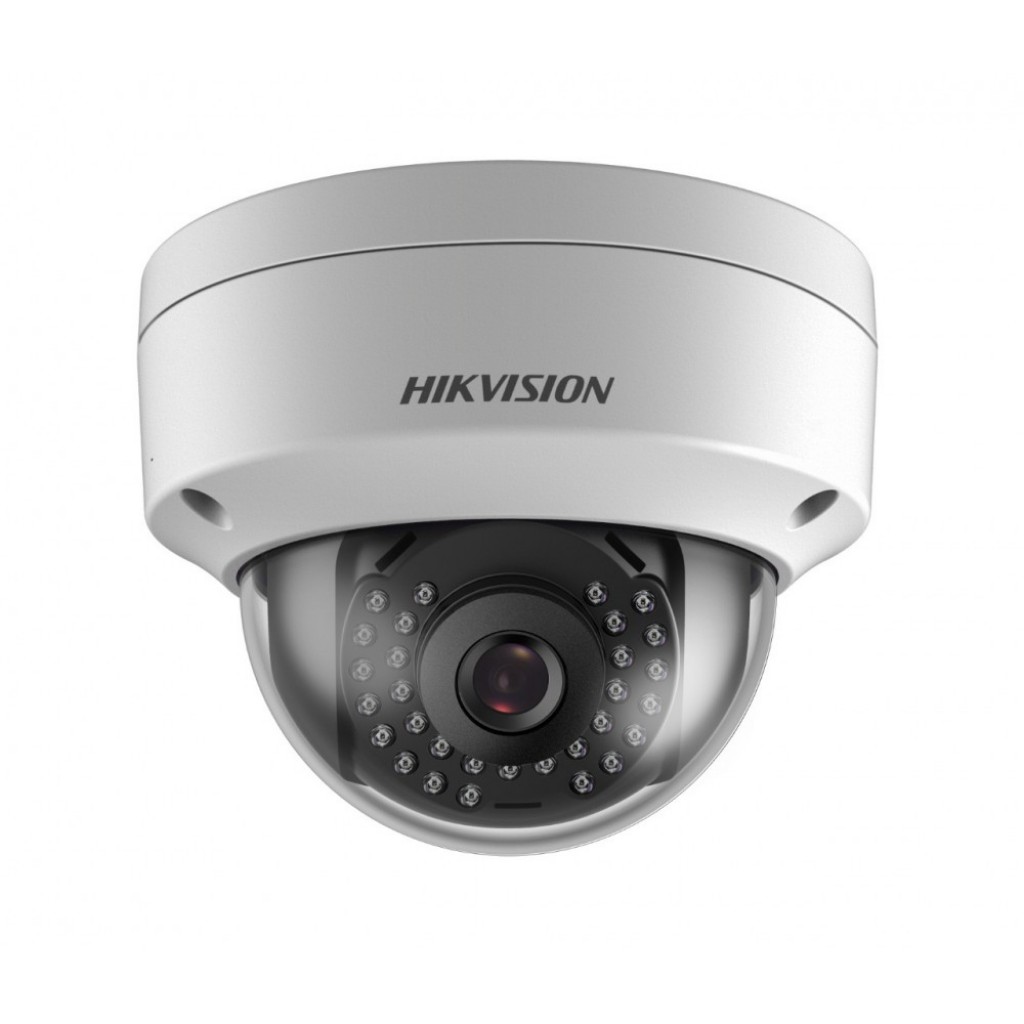

2 MP Fixed Turret Network Camera

• High quality imaging with 2 MP resolution
• Efficient H.265+ compression technology
• Clear imaging even with strong back lighting thanks to DWDR technology
• Water- and dust- resistant (IP67)
• EXIR 2.0: advanced infrared technology with long IR range.

• Image Sensor:      1/2.8" progressive scan CMOS
• Min. Illumination:      Color: 0.028Lux @ (F2.0, AGC ON)
• Shutter Speed:      1/3 s to 1/100, 000 s
• Slow Shutter:      Yes
• Day &Night:      IR cut filter
• Wide Dynamic Range:      DWDR
• Angle Adjustment:      Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
• DNR:      3D DNR

• Lens:      2.8 mm, 4 mm
• Auto-Iris:      No
• Aperture:      F2.0
• Focus:      Fixed
• FOV:      2.8 horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV 135.5°,4 mm, horizontal FOV 86°, vertical FOV 46.5°, diagonal FOV 102.5°
• Lens Mount:      M12

• IR Range:      Up to 30 m
• Wavelength:      850 nm

• Max. Resolution:      1920 × 1080
• Video Compression:      Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG
• H.264 Type:      Main Profile/High Profile/Baseline Profile
• H.265 Type:      Main Profile
• Video Bit Rate:      32 Kbps to 8 Mbps

• Region Of Interest:      1 fixed region for main stream

• Image Enhancement:      BLC, 3D DNR
• Image Setting:      Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night Switch:      Auto, scheduled, day, night
• Main Stream Max. Frame Rate:      50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-Stream Max. Frame Rate:      50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

• Protocols:      TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
• API:      ONVIF (PROFILE S), ISAPI
• Simultaneous Live View:      Up to 6 channels
• User/Host:      Up to 32 users,3 levels: Administrator, Operator and User
• Client:      iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
• Web Browser:      IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
• Alarm Trigger:      Motion detection, video tampering alarm, illegal login

• Communication Interface:      1 RJ45 10M/100M self-adaptive Ethernet port

• Firmware Version:      V5.5.83
• General Function:      Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
• Startup And Operating Conditions:      -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
• Power Supply:      12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
• Material:      Camera body: metal, bottom base : plastic
• Dimensions:      Camera: Ø 110 mm × 93.2 mm (4.3" × 3.7"),With package: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
• Weight:      Camera: approx. 360 g (0.8 lb.),With package: approx. 610 g (1.3 lb.)
• Power Consumption And Current:      12 VDC, 0.3 A, max: 3.5 W,PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 4.5 W
• Interface Protection:      IP67
