Product Information:

Hikvision DS-2CD2423G0-I(W) Features and Benefits

Features:


Hikvision DS-2CD2423G0-I(W) Description

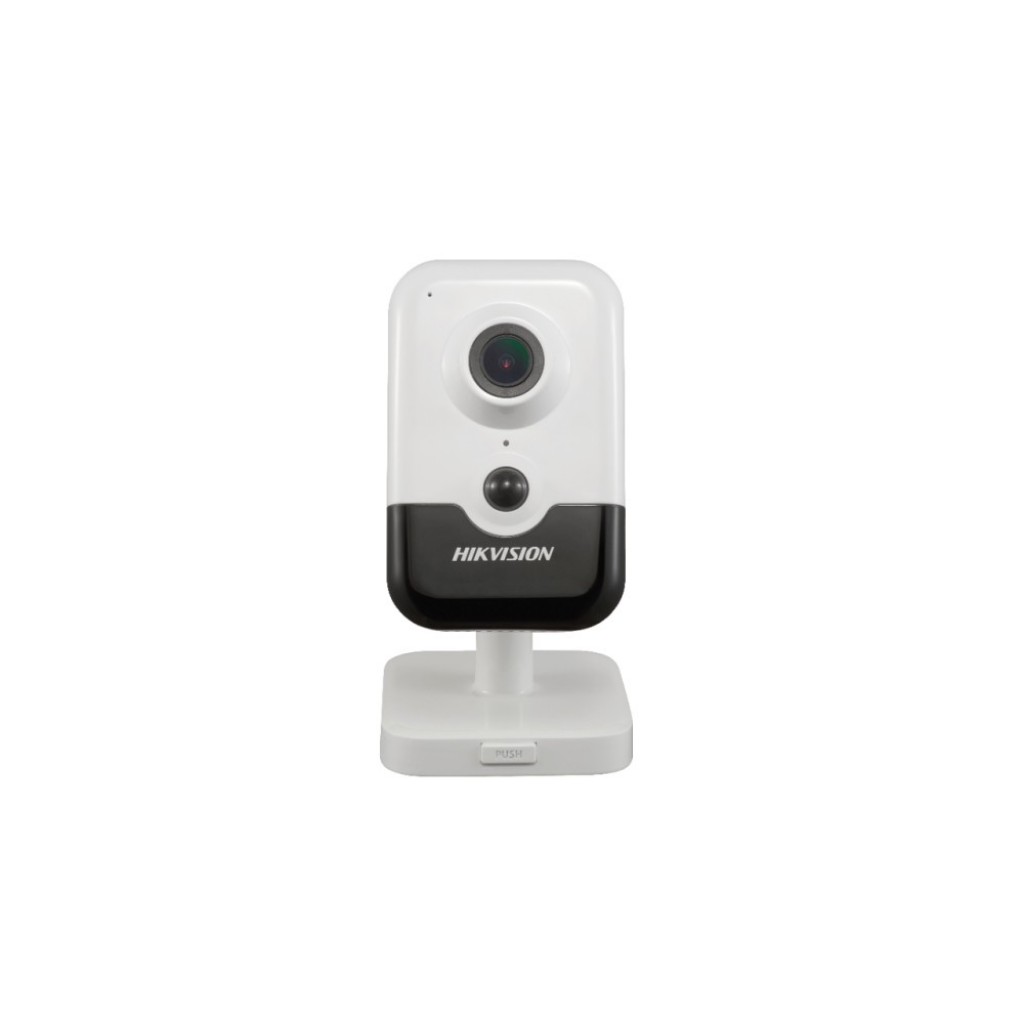

2 MP Indoor WDR Fixed Cube Network Camera

• High quality imaging with 2 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Provides real-time security via built-in two-way audio
• Detects human body through passive infrared is sensitive to body temperature (PIR)
• W: Wi-Fi connection
•
  Specification






  Camera




• Image Sensor:            1/2.7" Progressive Scan CMOS
• Min. Illumination:            Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
• Shutter Speed:            1/3 s to 1/100,000 s
• Slow Shutter:            Yes
• Day &Night:            IR Cut Filter
• Wide Dynamic Range:            120dB
• Angle Adjustment:            Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
• DNR:            3D DNR
•

  Lens




• Lens:            2.8/4 mm
• Aperture:            F2.0
• FOV:            2.8 mm, horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°,4 mm, horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°
• Lens Mount:            M12
•

  Illuminator




• IR Range:            10 m
• Wavelength:            850nm
•

  PIR




• PIR Angle:            Horizontal: 90°, Vertical: 80°
• PIR Range:            10 m
•

  Video




• Max. Resolution:            1920 × 1080
• Main Stream:            50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub Stream:            50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream:            50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
• Video Compression:            Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
• H.264 Type:            Main Profile/High Profile
• H.265 Type:            Main Profile
• Video Bit Rate:            32 Kbps to 16 Mbps
• SVC:            Support H.264 and H.265 encoding
•

  Audio




• Audio Compression:            G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
• Audio Bit Rate:            64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
• Environment Noise Filtering:            Yes
• Audio Sampling Rate:            8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
•

  Smart Feature-Set




• Smart Event:            Line crossing detection, intrusion detection, face detection
• Basic Event:            Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Face Detection:            Yes
• Linkage Method:            Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email
•





• Image Enhancement:            BLC/3D DNR/HLC
• Image Setting:            Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
• Day/Night Switch:            Day/Night/Auto/Schedule
•

  Wi-Fi




• Frequency:            2.412 GHz to 2.4835 GHz
• Channel Bandwidth:            20M/40M
• Security:            WPA, WPA2
• Transfer Rate:            11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
• Wireless Range:            50 m
• Wireless Standards:            IEEE 802.11b/g/n
•

  Network




• Network Storage:            Support MicroSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
• Protocols:            802.11b: DQPSK, DBPSK, CCK,802.11g/n: OFDM/64-QAM, 16-QAM, QPSK, BPSK
• API:            ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
• Security:            Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
• Simultaneous Live View:            Up to 6 channels
• User/Host:            Up to 32 users,3 levels: Administrator, Operator and User
• Client:            iVMS-4200, Hik-Connect, Hik-Central
• Web Browser:            Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
• Alarm Trigger:            Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login
• Firmware Version:            5.6.3
•

  Interface




• Communication Interface:            1 RJ45 10M/100M self-adaptive Ethernet port
• Audio:            1 built-in mic, 1 built-in speaker, mono sound
• On-Board Storage:            Built-in Micro SD/SDHC/SDXC slot, up to 128G
•

  General




• Web Client Language:            32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General Function:            Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
• Reset:            Yes
• Startup And Operating Conditions:            -10 °C to +40 °C (14 °F to +104 °F), Humidity 95% or less (non-condensing)
• Power Supply:            12 VDC ± 25%, PoE (802.3af, class 3)
• Power Consumption And Current:            12 VDC, 0.5 A, max. 6 W, Φ 5.5 mm coaxial plug power,PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W
• Material:            Plastic
• Dimensions:            102.8 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")
• Weight:            Camera: Approx. 128 g (0.3 lb.)
•

  Compression Standard




• H.264+:            Main stream supports
• H.265+:            Main stream supports
•

  Smart Feature-Set




• Face Detection:            Yes

Specification






Camera



  Image Sensor:            1/2.7" Progressive Scan CMOS Min. Illumination:            Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR Shutter Speed:            1/3 s to 1/100,000 s Slow Shutter:            Yes Day &Night:            IR Cut Filter Wide Dynamic Range:            120dB Angle Adjustment:            Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° DNR:            3D DNR

Lens



  Lens:            2.8/4 mm Aperture:            F2.0 FOV:            2.8 mm, horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°,4 mm, horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102° Lens Mount:            M12

Illuminator



  IR Range:            10 m Wavelength:            850nm

PIR



  PIR Angle:            Horizontal: 90°, Vertical: 80° PIR Range:            10 m

Video



  Max. Resolution:            1920 × 1080 Main Stream:            50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) Sub Stream:            50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) Third Stream:            50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240) Video Compression:            Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264 H.264 Type:            Main Profile/High Profile H.265 Type:            Main Profile Video Bit Rate:            32 Kbps to 16 Mbps SVC:            Support H.264 and H.265 encoding

Audio



  Audio Compression:            G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM Audio Bit Rate:            64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) Environment Noise Filtering:            Yes Audio Sampling Rate:            8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Smart Feature-Set



  Smart Event:            Line crossing detection, intrusion detection, face detection Basic Event:            Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Face Detection:            Yes Linkage Method:            Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email




  Image Enhancement:            BLC/3D DNR/HLC Image Setting:            Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser Day/Night Switch:            Day/Night/Auto/Schedule

Wi-Fi



  Frequency:            2.412 GHz to 2.4835 GHz Channel Bandwidth:            20M/40M Security:            WPA, WPA2 Transfer Rate:            11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps Wireless Range:            50 m Wireless Standards:            IEEE 802.11b/g/n

Network



  Network Storage:            Support MicroSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR Protocols:            802.11b: DQPSK, DBPSK, CCK,802.11g/n: OFDM/64-QAM, 16-QAM, QPSK, BPSK API:            ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome Security:            Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 Simultaneous Live View:            Up to 6 channels User/Host:            Up to 32 users,3 levels: Administrator, Operator and User Client:            iVMS-4200, Hik-Connect, Hik-Central Web Browser:            Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+ Alarm Trigger:            Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login Firmware Version:            5.6.3

Interface



•

• Communication Interface:            1 RJ45 10M/100M self-adaptive Ethernet port
• Audio:            1 built-in mic, 1 built-in speaker, mono sound
• On-Board Storage:            Built-in Micro SD/SDHC/SDXC slot, up to 128G




•
• General




• Web Client Language:            32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General Function:            Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
• Reset:            Yes
• Startup And Operating Conditions:            -10 °C to +40 °C (14 °F to +104 °F), Humidity 95% or less (non-condensing)
• Power Supply:            12 VDC ± 25%, PoE (802.3af, class 3)
• Power Consumption And Current:            12 VDC, 0.5 A, max. 6 W, Φ 5.5 mm coaxial plug power,PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W
• Material:            Plastic
• Dimensions:            102.8 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")
• Weight:            Camera: Approx. 128 g (0.3 lb.)




•
• Compression Standard




• H.264+:            Main stream supports
• H.265+:            Main stream supports




•
• Smart Feature-Set




• Face Detection:            Yes
