Product Information:

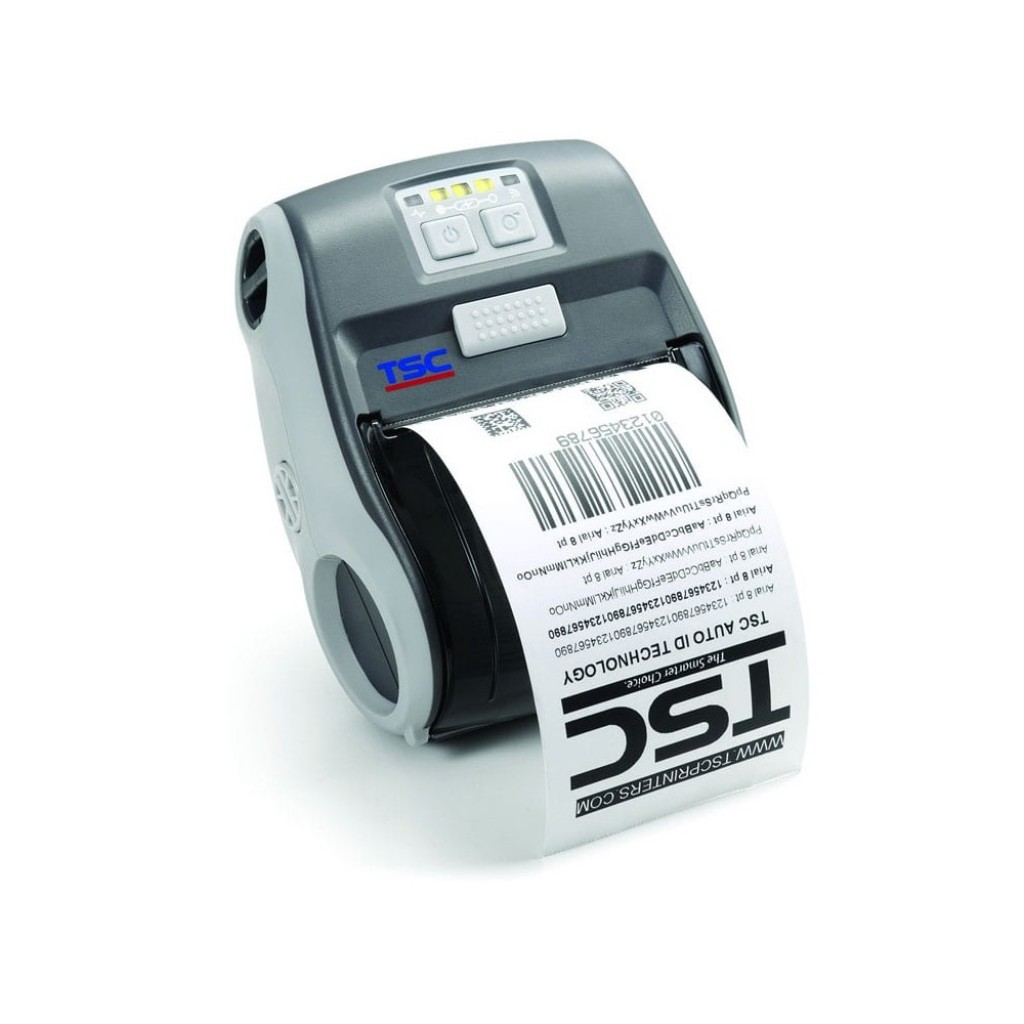

TSC Alpha-3R Features and Benefits
Features:
TSC Alpha-3R Description
Overview
• IP54-rated protective case to resist dust and water
• Plastic design with rubber over-mold construction that withstands 5 ft. (1.5 m) drop
• Wired & wireless communication interfaces: USB 2.0, RS-232, Bluetooth, and 802.11 a/b/g/n
• High capacity 2500 mAh rechargeable Lithium Ion batteries
• Large Paper capacity to reduce the frequency of changing paper roll
• High-speed processor and extensive memory for fast print speeds of up to 4" (102 mm) per second
• Last more than 30 hours of printing receipts on a single battery charge
• Supports TSPL-EZ (EPL2 and ZPL emulations), ESC-POS or CPCL emulation
• 2-Year Warranty
Specification
| Model |
|
Alpha-3R |
| |
Add to Compare |
| Product Photos |
|
Alpha-3R |
| Print Specification |
Resolution |
8 dots/mm (203 DPI) |
| Max. print speed |
102 mm (4")/second |
| Max. print width |
72 mm (2.83") |
| Max. print length |
2,286 mm (90") |
| Printing method |
Direct Thermal |
| LCD/LED |
LCD/LED |
2 color LED for printer status, 3 LEDs for battery status |
| Memory |
SDRAM |
8 MB |
| Flash |
4 MB |
| Extension |
N/A |
| Ribbon & Media Capacity |
Ribbon capacity |
N/A |
| Ribbon width |
N/A |
| Media type |
Receipt paper, receipt paper with black mark in printing side & selected label |
| Media width |
Receipt: 50.8 ~ 80 mm (2" ~ 3.15")
Label: 50.8 ~ 78 mm (2" ~ 3.07") |
| Media thickness |
Receipt: 0.0508 ~ 0.1016 mm (2 ~ 4 mil)
Label: Fasson standard label media up to 0.14 mm (5.5 mil) |
| Media core diameter |
Label: Min. 25.4 mm (1") |
| Media length |
10.2 ~ 25.4 mm (0.4" ~ 1") |
| Media roll capacity |
Receipt: 57 mm (2.25") OD
Label: 55 mm (2.16") OD |
| Interface |
Standard |
• PCBA1：USB 2.0, Bluetooth
• PCBA2：USB 2.0, MFi Bluetooth
• PCBA3：USB 2.0, 802.11 a/b/g/n Wi-Fi |
| Options |
• RS-232 |
| Software Support |
Software support |
SAP, Oracle, WHQL 8.1, MFi, Windows, Linux, MAC X.10, Microsoft SQL Server, BarTender, Nice Label |
| Physical characteristics |
Dimension |
116 mm (W) x 148 mm (H) x 70 mm (D)
4.57"(W) x 5.83"(H) x 2.75"(D) |
| Weight |
0.55 kg (1.212 lbs) |
