Product Information:

ZKTeco TX628 Fingerprint Time Attendance System Features and Benefits

Features:

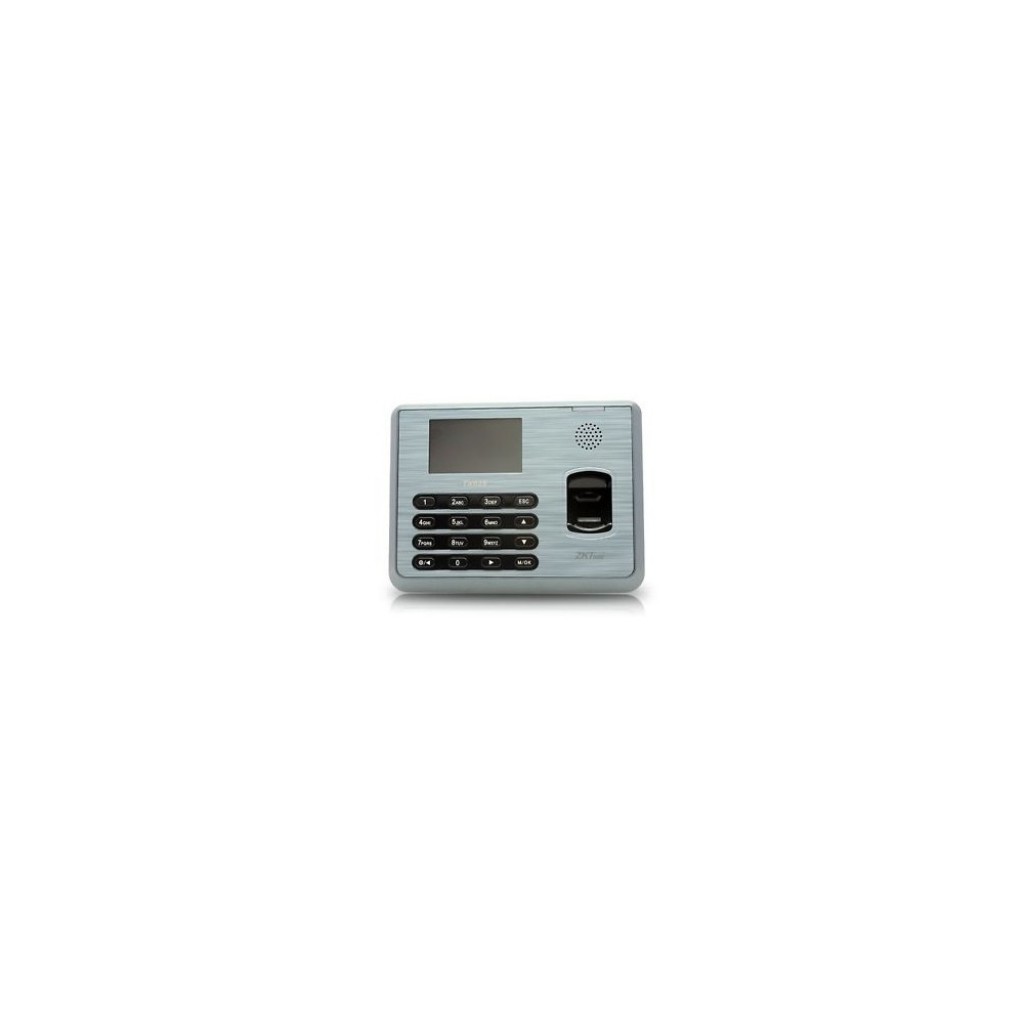

ZKTeco TX628 Fingerprint Time Attendance System Description

TX628 is an innovative biometric fingerprint reader for Time & Attendance applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The TX628 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality optical fingerprint sensor. The 3 inch TFT can display more information vividly, including fingerprint image quality and verification result etc. TCP/IP communication is standard and make sure the data transmission between terminal and PC can be easily done within several seconds.

Features

• Color TFT screen with GUI Interface for ease of use
• ZK Optical Sensor
• 1 touch a-second user recognition
• Stores 3,200 templates and 80,000 transactions
• Optional integrated proximity or smart card reader
• Built-in Serial and Ethernet ports
• Built-in USB port optional, allows for manual data transfer when network isn't available
• Built in bell scheduling
• Real-time 1-touch data export 3rd party hosted & non-hosted applications
• Audio-Visual indications for acceptance and rejection of valid/invalid fingers
• SDK available for OEM customers and software developers

Specifications :

• Fingerprint Capacity: 3200 templates
• Transaction Capacity:80,000
• Sensor: ZK Optical Sensor
• Algorithm Version: ZK Finger v10.0
• Communication: RS232/485, TCP/IP,USB-host,USB-client
• Optional Functions:Webserver,Printer,9 digit user ID
• Display: 3 inches TFT Screen
• Power Supply: 5V DC 2A
• Operating Temperature: 0 °C- 45 °C
• Operating Humidity:20%-80%

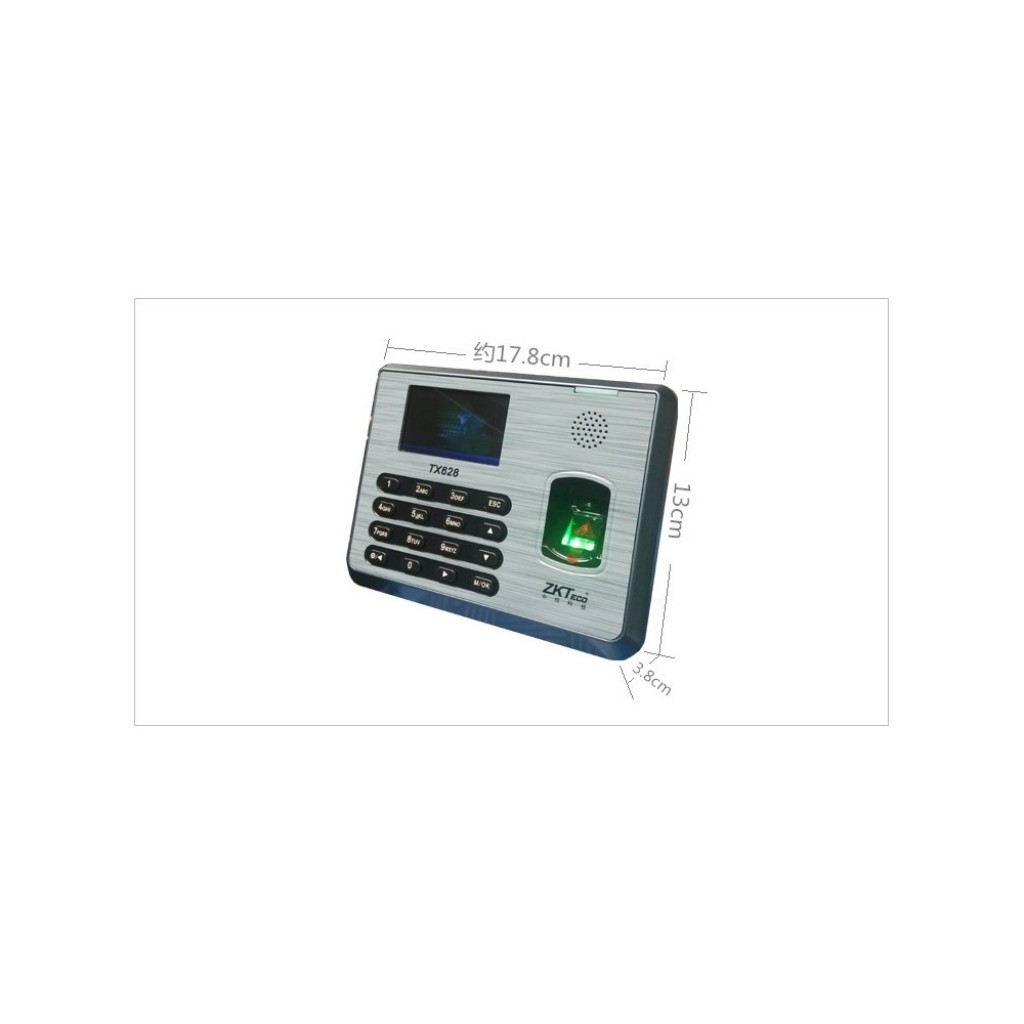

• Dimension: 180*135*37 mm
• Gross Weight:0.90 kg

Package List:

• 1 x Fingerprint time attendance
• 1 x Installation screws kit
• 1 x 100~240V US plug power adapter (140cm)
• 1 x Software CD
• 1 x Chinese manual
• 1 x USB cable (140cm)
• 1 x Network cable (40cm)
