Product Information:

Hikvision DS-2CD1353G0-I Features and Benefits

Features:


Hikvision DS-2CD1353G0-I Description

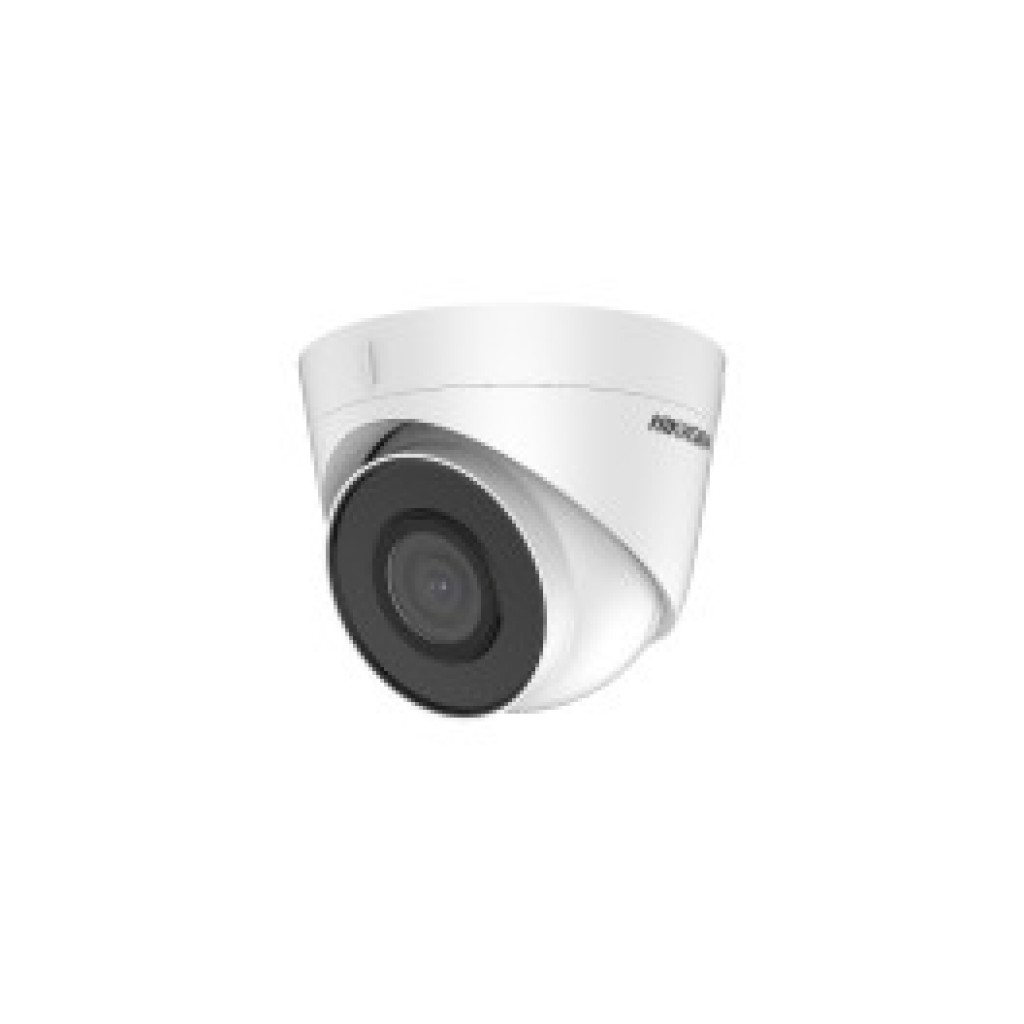

5MP Fixed Turret Network Camera

• High quality imaging with 5 MP resolution
• Efficient H.265+ compression technology
• Clear imaging even with strong back lighting due to 120 dB WDR
• Water and dust resistant (IP67)
• EXIR 2.0: advanced infrared technology with long IR range.

• Image Sensor:           1/2.7" Progressive Scan CMOS
• Min. Illumination:           Color: 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON)
• Shutter Speed:           1/3 s to 1/100,000 s
• Slow Shutter:           Yes
• Day &Night:           IR Cut Filter
• Wide Dynamic Range:           120 dB
• Angle Adjustment:           Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
• DNR:           3D DNR

• Lens:           2.8/4/6 mm
• Auto-Iris:           No
• Aperture:           F2.0
• Focus:           Fixed
• FOV:           2.8 mm, horizontal FOV: 100°, vertical FOV: 74°, diagonal FOV: 130°,4 mm, horizontal field of view: 75°, vertical FOV: 55°, diagonal FOV: 98°,6 mm, horizontal field of view: 49°, vertical FOV: 37°, diagonal FOV: 60°
• Lens Mount:           M12

• IR Range:           Up to 30 m
• Wavelength:           850nm

• Max. Resolution:           2560 × 1920
• Main Stream:           50Hz:12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720),60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub Stream:           50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Video Compression:           Main stream: H.265/H.264 ,Sub-stream: H.265/H.264/MJPEG
• H.264 Type:           Baseline Profile/Main Profile/High Profile
• H.265 Type:           Main Profile
• Video Bit Rate:           32 Kbps to 8Mbps

• Region Of Interest:           Support 1 fixed region for main stream and sub-stream

• Image Enhancement:           BLC/3D DNR
• Image Setting:           Saturation, brightness, contrast and sharpness are adjustable via client software and web browser
• Day/Night Switch:           Auto/Scheduled/Day/Night

• Network Storage:           NAS (NFS,SMB/CIFS)
• Protocols:           TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, UDP, Bonjour, 802.1x
• API:           ONVIF(PROFILE S,PROFILE G), ISAPI
• Simultaneous Live View:           Up to 6 channels
• User/Host:           Up to 32 users,3 levels: Administrator, Operator and User
• Client:           iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
• Web Browser:           IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
• Alarm Trigger:           Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full

• Communication Interface:           1 RJ45 10M/100M self-adaptive Ethernet port

• Firmware Version:           V5.5.52
• General FunctionHeart:           beat, mirror, password protection, privacy mask, watermark, IP address filter
• Startup And Operating Conditions:           -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
• Power Supply:           12 VDC ± 25%,PoE: 802.3af, class 3
• Power Consumption And Current:           12 VDC, 0.5 A, max. 5 W,PoE (802.3af, 36 to 57 V), 0.2 A to 0.1 A, max. 6.5 W
• Material:           Camera body: metal, bottom base: plastic
• Dimensions:           Camera: Ø 110 mm × 93.2 mm (4.3" × 3.7"),With package: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
• Weight:           Camera: approx. 400 g (0.9 lb.),With package: approx. 600 g (1.3 lb.)
• Interface Protection:           IP67

• H.264+:           Main stream supports
• H.265+:           Main stream supports
