Product Information:

Hikvision DS-2CD2443G0-I(W) Features and Benefits

Features:


Hikvision DS-2CD2443G0-I(W) Description

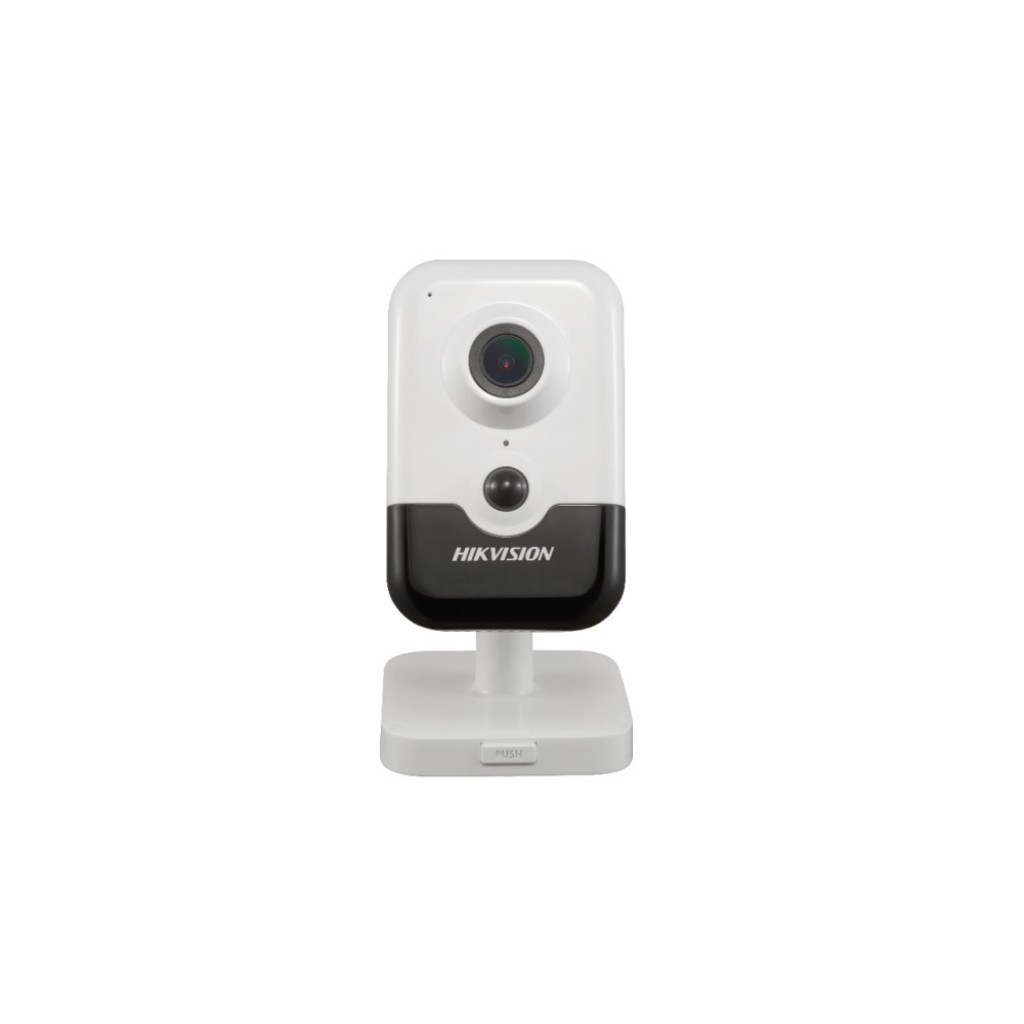

4 MP Indoor WDR Fixed Cube Network Camera

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Provides real-time security via built-in two-way audio
• Detects human body through passive infrared is sensitive to body temperature (PIR)
• -W: Wi-Fi connection
• Specification




  Camera








• Image Sensor:                               1/3" Progressive Scan CMOS
• Min. Illumination:                           Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 lux @(F1.6, AGC ON), 0 lux with IR
• Shutter Speed:                              1/3 s to 1/100,000 s
• Slow Shutter:                                 Yes
• Day &Night:                                   IR Cut Filter
• Wide Dynamic Range:                  120dB
• Angle Adjustment:                         Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
• DNR:                                             3D DNR
•

  Lens




• Lens:                                             2.8/4 mm
• Aperture:                                       F1.6
• FOV:                                             2.8 mm, horizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114°,4 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 93°
• Lens Mount:                                 M12
•

  Illuminator




• IR Range:                                    10 m
• Wavelength:                                850nm
•

  PIR




• PIR Angle:                                  Horizontal: 90°, Vertical: 80°
• PIR Range:                                10 m
•

  Video




• Max. Resolution:                        2688 × 1520
• Main Stream:                              50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub Stream:                               50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream:                             50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
• Video Compression:                   Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
• H.264 Type:                                Main Profile/High Profile
• H.265 Type:                                Main Profile
• Video Bit Rate:                           32 Kbps to 16 Mbps
• SVC:                                          Support H.264 and H.265 encoding
•

  Audio




• Audio Compression:                  G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
• Audio Bit Rate:                           64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
• Environment Noise Filtering:      Yes
• Audio Sampling Rate:                 8kHz/16kHz/32kHz/44.1kHZ/48kHz
•

  Smart Feature-Set




• Smart Event:                              Line crossing detection, intrusion detection, face detection
• Basic Event:                               Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Linkage Method:                        Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email
•





• Image Enhancement:                 BLC/3D DNR/HLC
• Image Setting:                            Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
• Day/Night Switch:                       Day/Night/Auto/Schedule
•

  Wi-Fi




• Channel Bandwidth:                    20M/40M
• Security:                                      WPA, WPA2
• Transfer Rate:                             11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
• Wireless Range:                          50 m
• Wireless Standards:                    IEEE 802.11b/g/n
• Frequency Range:                       2.412 GHz to 2.4835 GHz
•

  Network




• Network Storage:                        Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
• Protocols:                                    802.11b: DQPSK, DBPSK, CCK,802.11g/n: OFDM/64-QAM, 16-QAM, QPSK, BPSK
• API:                                             ONVIF (PROFILE S, PROFILE G), ISAPI
• Simultaneous Live View:             Up to 6 channels
• User/Host:                                   Up to 32 users,3 levels: Administrator, Operator and User
• Client:                                          iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
• Web Browser:                              Plug-in required live view:,IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view:,Chrome 45.0+, Firefox 52.0+
• Alarm Trigger:                              Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login
• Firmware Version:                        5.6.3
•

  Interface




• Communication Interface:            1 RJ45 10M/100M self-adaptive Ethernet port
• Audio:                                           1 built-in mic, 1 built-in speaker, mono sound
• On-Board Storage:                       Built-in Micro SD/SDHC/SDXC slot, up to 128G
•

  General




• General Function:                         One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Reset:                                           Yes
• Startup And Operating Conditions: -10 °C to +40 °C (14 °F to +104 °F), Humidity 95% or less (non-condensing)
• Power Supply:                               12 VDC ± 25%, PoE (802.3af, class 3)
• Power Consumption And Current:12 VDC, 0.5 A, max. 6 W, Φ 5.5 mm coaxial plug power,PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W
• Material:                                         Plastic
• Dimensions:                                   102.8 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")
• Weight:                                           Camera: Approx. 128 g (0.3 lb.)
•

  Compression Standard




• H.264+:                                          Main stream supports
• H.265+:                                          Main stream supports
•

  Smart Feature-Set




• Face Detection:                             Yes
•
