Product Information:

Hikvision DS-2CD2063G0-I Features and Benefits

Features:


Hikvision DS-2CD2063G0-I Description

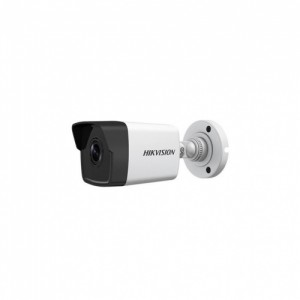

6 MP Outdoor WDR Fixed Mini Bullet Network Camera

• High quality imaging with 6 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Water and dust resistant (IP67)
• Robust structure design with full metal materials.

• Image Sensor:              1/2.9" Progressive Scan CMOS
• Min. Illumination:              Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
• Shutter Speed:              1/3 s to 1/100,000 s
• Slow Shutter:              Yes
• Day &Night:              IR Cut Filter
• Wide Dynamic Range:              120dB
• Angle Adjustment:              Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
• DNR:              3D DNR

• Lens:              2.8/4/6/8 mm
• Auto-Iris:              No
• Aperture:              F2.0
• Focus:              Fixed
• FOV:              2.8 mm, horizontal FOV: 97°, vertical FOV: 63°, diagonal FOV: 120°,4 mm, horizontal FOV: 78°, vertical FOV: 50°, diagonal FOV: 97°,6 mm, horizontal FOV: 60°, vertical FOV: 39°, diagonal FOV: 75°,8 mm, horizontal FOV: 39.5°, vertical FOV: 26°, diagonal FOV: 48°
• Lens Mount:              M12

• IR Range:              Up to 30 m
• Wavelength:              850nm

• Max. Resolution:              3072 × 2048
• Main Stream:              50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub Stream:              50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream:              50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)
• Video Compression:              Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
• H.264 Type:              Main Profile/High Profile
• H.265 Type:              Main Profile
• Video Bit Rate:              32 Kbps to 16 Mbps
• SVC:              H.264 and H.265 encoding support

• Smart Event:              Line crossing detection, intrusion detection, face detection
• Basic Event:              Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Face Detection:              Yes
• Linkage Method:              Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email

• Image Enhancement:              BLC/3D DNR/HLC
• Image Setting:              Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
• Target Cropping:              No
• Day/Night Switch:              Day/Night/Auto/Schedule

• Network Storage:              Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
• Protocols:              TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• API:              ONVIF (PROFILE S, PROFILE G), ISAPI
• Security:              Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
• Simultaneous Live View:              Up to 6 channels
• User/Host:              Up to 32 users,3 levels: Administrator, Operator and User
• Client:              iVMS-4200, Hik-Connect, Hik-Central
• Web Browser:              Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
• Alarm Trigger:              Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
• Firmware Version:              5.6.3

• Communication Interface:              1 RJ45 10M/100M self-adaptive Ethernet port
• Video Output:              No
• On-Board Storage:              Built-in microSD/SDHC/SDXC slot, up to 128 GB

• Web Client Language:              32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General Function:              One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Reset:              Yes
• Startup And Operating Conditions:              -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
• Power Supply:              12 VDC ± 25%, Φ 5.5mm ,PoE(802.3af, class 3)
• Power Consumption And Current:              12 VDC, 0.4 A, max. 6 W,PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W
• Material:              Metal
• Dimensions:              Camera: Φ 70 mm × 155 mm (Φ 2.8" × 6.1"),Package: 216 × 121 × 118 mm (8.5" × 4.8" × 4.7")
• Weight:              Camera: approx. 410 g (0.9 lb.)
• Interface ProtectionI:              P67

• H.264+:              Main stream supports
• H.265+:              Main stream supports
